Tool / Engine / Fuel

Figure 1708 · Vacuum Piping

12 genuine catalog part numbers · Production from 2022-08

Open interactive figure

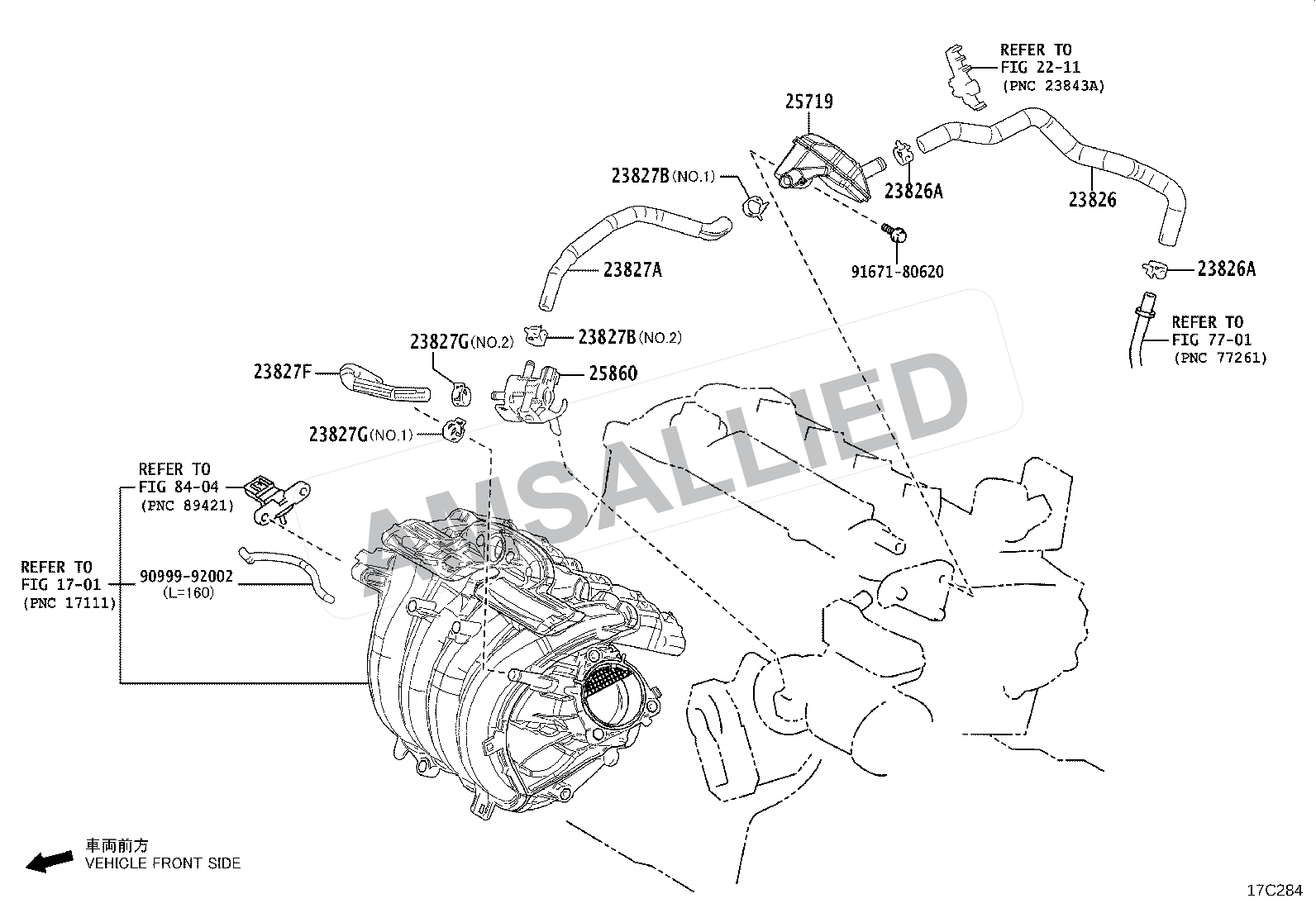

Toyota Hyryder Vacuum Piping exploded parts diagram, figure 1708 — AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

12 parts

Hose, Fuel Vapor Feed, No.1

PNC 23826

Hose, Fuel Vapor Feed, No.1

PNC 23826

Hose, Fuel Vapor Feed, No.1

PNC 23826

Hose, Fuel Vapor Feed, No.2

PNC 23827A

Valve Assy, Vacuum Switching, No.1

PNC 25860

Valve Assy, Vacuum Switching, No.1

PNC 25860

Clip(for Fuel Vapor Feed Hose, No.2)

PNC 23827B

Clip(for Fuel Vapor Feed Hose, No.1)

PNC 23826A

Diagram Hardware / Fastener

PNC 9167180620

Diagram Hardware / Fastener

PNC 9099992002

Diagram Hardware / Fastener

PNC 90118WC077

Diagram Hardware / Fastener

PNC 90118WC234
