Tool / Engine / Fuel

Figure 1601 · Water Pump

14 genuine catalog part numbers · Production from 2022-08

Open interactive figure

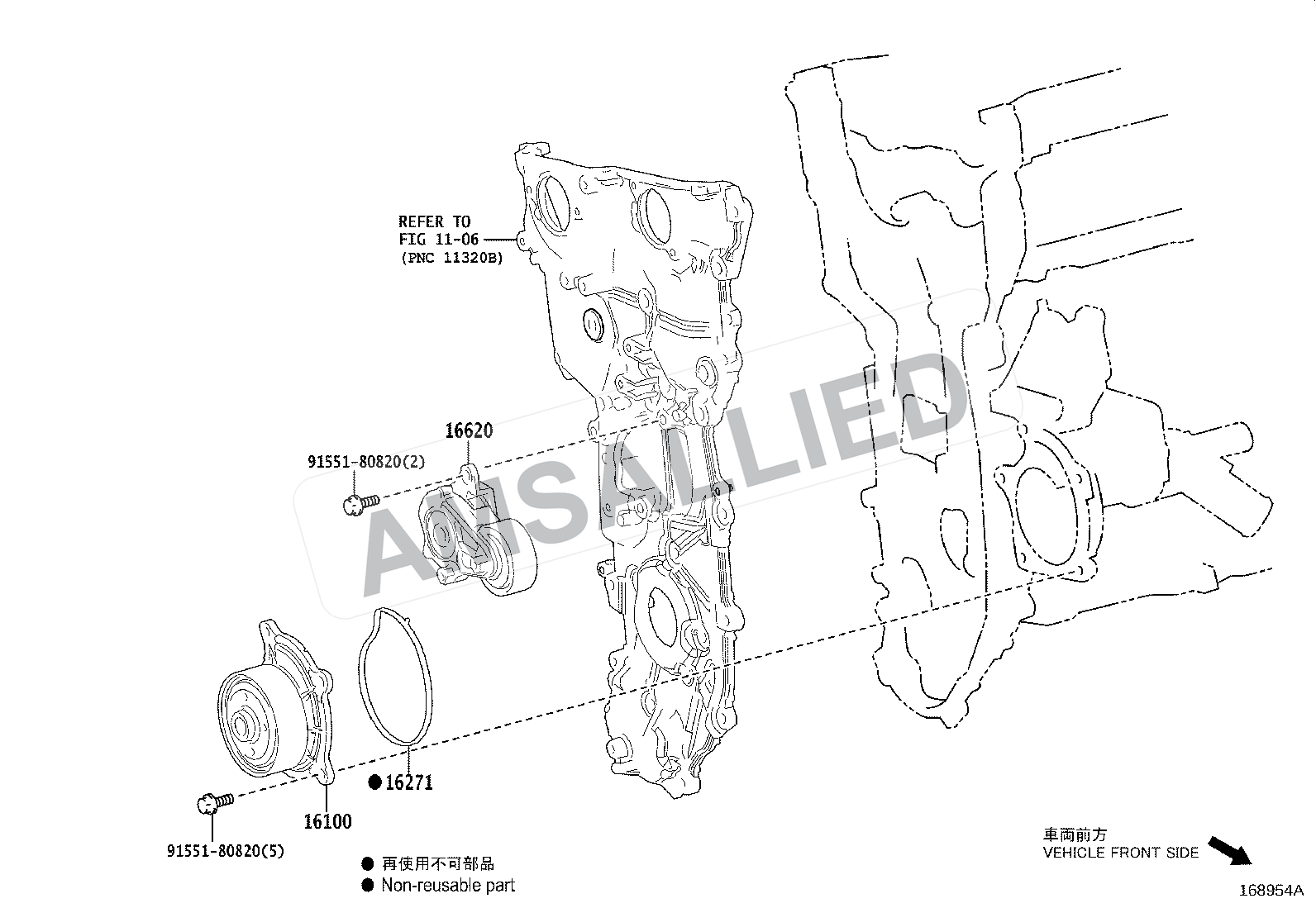

Toyota Hyryder Water Pump exploded parts diagram, figure 1601 — AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

14 parts

Pump Assy, Engine Water

PNC 16100

Pulley, Water Pump

PNC 16173

Gasket, Water Pump

PNC 16271

Pulley Assy, Idler

PNC 16630G

Tensioner Assy, V-ribbed Belt

PNC 16620

Tensioner Assy, V-ribbed Belt

PNC 16620

Tensioner Assy, V-ribbed Belt

PNC 16620

Bracket Sub-assy, Idler Pulley, No.1

PNC 16607A

Diagram Hardware / Fastener

PNC 9155180820

Diagram Hardware / Fastener

PNC 90118WC023

Diagram Hardware / Fastener

PNC 90118WC078

Diagram Hardware / Fastener

PNC 90118WC005

Diagram Hardware / Fastener

PNC 90118WCL75

Diagram Hardware / Fastener

PNC 90118WC022
