Tool / Engine / Fuel

Figure 1301 · Crankshaft & Piston

91 genuine catalog part numbers · Production from 2022-08

Open interactive figure

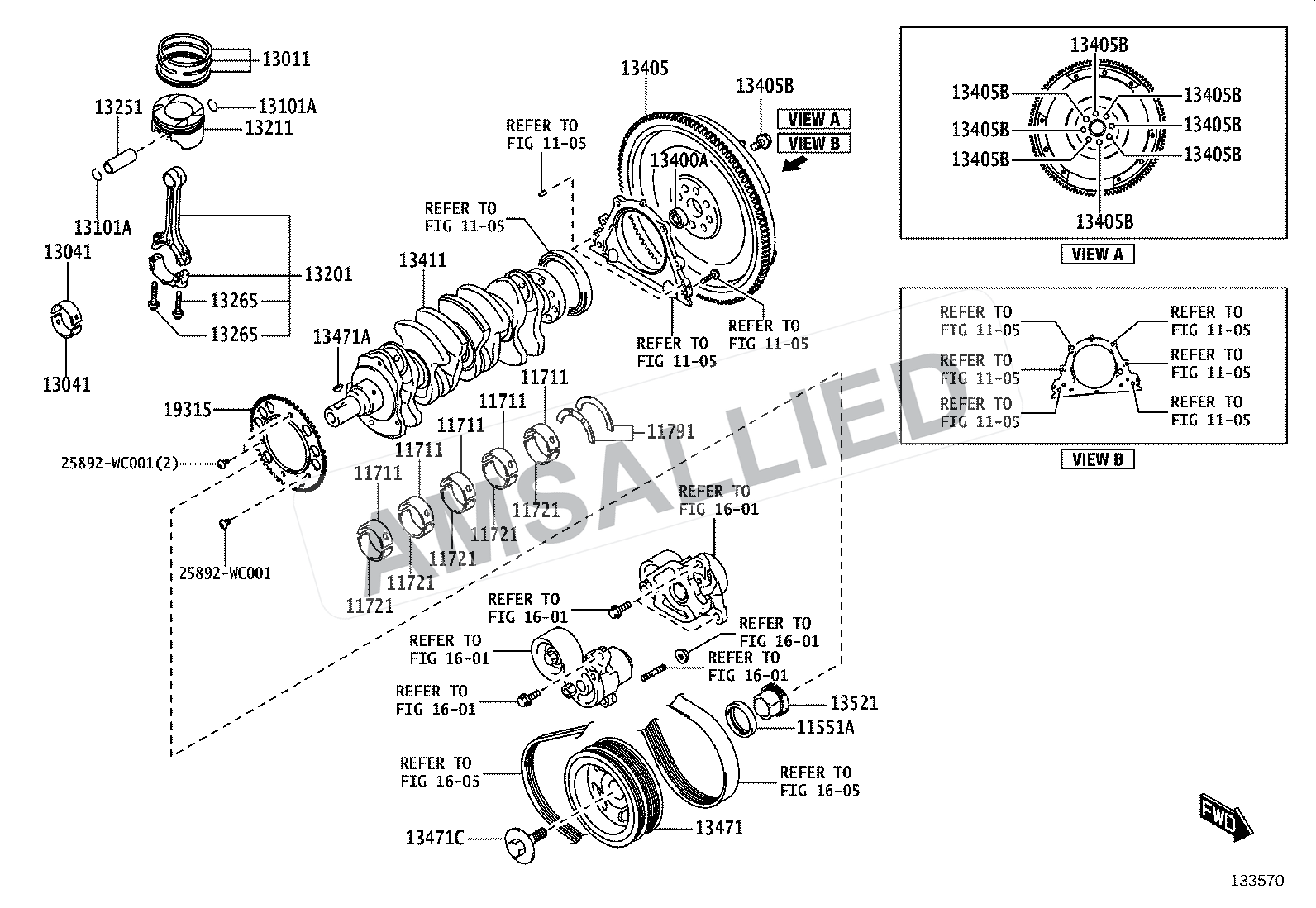

Toyota Hyryder Crankshaft & Piston exploded parts diagram, figure 1301 — AMS Allied watermarked Toyota Hyryder reference diagram.

Part numbers in this diagram

91 parts

11701-F205001

Bearing, Crankshaft

PNC 11711

11701-F205002

Bearing, Crankshaft

PNC 11711

11701-F205003

Bearing, Crankshaft

PNC 11711

11701-F205004

Bearing, Crankshaft

PNC 11711

11701-F205005

Bearing, Crankshaft

PNC 11711

11701-F205006

Bearing, Crankshaft

PNC 11711

11711-WC001

Bearing, Crankshaft

PNC 11711

11711-WC002

Bearing, Crankshaft

PNC 11711

11711-WC003

Bearing, Crankshaft

PNC 11711

11711-WC004

Bearing, Crankshaft

PNC 11711

11711-WC005

Bearing, Crankshaft

PNC 11711

11711-WC006

Bearing, Crankshaft

PNC 11711

11711-WC007

Bearing, Crankshaft

PNC 11711

11711-WC008

Bearing, Crankshaft

PNC 11711

11711-WC009

Bearing, Crankshaft

PNC 11711

11711-WC010

Bearing, Crankshaft

PNC 11711

11711-WC011

Bearing, Crankshaft

PNC 11711

11711-WC012

Bearing, Crankshaft

PNC 11711

11711-WC013

Bearing, Crankshaft

PNC 11711

11711-WC014

Bearing, Crankshaft

PNC 11711

11711-WC015

Bearing, Crankshaft

PNC 11711

11711-WC016

Bearing, Crankshaft

PNC 11711

11711-WC017

Bearing, Crankshaft

PNC 11711

11711-WC018

Bearing, Crankshaft

PNC 11711

11711-WC019

Bearing, Crankshaft

PNC 11711

11711-WC020

Bearing, Crankshaft

PNC 11711

11721-WC001

Bearing, Crankshaft, No.2

PNC 11721

11721-WC002

Bearing, Crankshaft, No.2

PNC 11721

11721-WC003

Bearing, Crankshaft, No.2

PNC 11721

11721-WC004

Bearing, Crankshaft, No.2

PNC 11721

11721-WC005

Bearing, Crankshaft, No.2

PNC 11721

11721-WC006

Bearing, Crankshaft, No.2

PNC 11721

11721-WC007

Bearing, Crankshaft, No.2

PNC 11721

11721-WC008

Bearing, Crankshaft, No.2

PNC 11721

11721-WC009

Bearing, Crankshaft, No.2

PNC 11721

11721-WC010

Bearing, Crankshaft, No.2

PNC 11721

11721-WC011

Bearing, Crankshaft, No.2

PNC 11721

11721-WC012

Bearing, Crankshaft, No.2

PNC 11721

11721-WC013

Bearing, Crankshaft, No.2

PNC 11721

11721-WC014

Bearing, Crankshaft, No.2

PNC 11721

11721-WC015

Bearing, Crankshaft, No.2

PNC 11721

11721-WC016

Bearing, Crankshaft, No.2

PNC 11721

11721-WC017

Bearing, Crankshaft, No.2

PNC 11721

11721-WC018

Bearing, Crankshaft, No.2

PNC 11721

11721-WC019

Bearing, Crankshaft, No.2

PNC 11721

11721-WC020

Bearing, Crankshaft, No.2

PNC 11721

11791-F2050

Washer, Crankshaft Thrust, Upper

PNC 11791

11791-WC008

Washer, Crankshaft Thrust, Upper

PNC 11791

11792-WC002

Washer, Crankshaft Thrust, Upper

PNC 11791

13011-F2060

Ring Set, Piston

PNC 13011

13011-WC005

Ring Set, Piston

PNC 13011

13041-F2040

Bearing, Connecting Rod

PNC 13041

13101-F3030

Piston Sub-assy, W/pin

PNC 13101

13201-F9090

Rod Sub-assy, Connecting

PNC 13201

13201-WC006

Rod Sub-assy, Connecting

PNC 13201

13211-WC006

Piston

PNC 13211

13251-WC001

Pin, Piston

PNC 13251

13265-25020

Bolt, Connecting Rod

PNC 13265

13265-WC002

Bolt, Connecting Rod

PNC 13265

13281-WC001

Bearing, Connecting Rod

PNC 13041

13281-WC002

Bearing, Connecting Rod

PNC 13041

13281-WC003

Bearing, Connecting Rod

PNC 13041

13281-WC004

Bearing, Connecting Rod

PNC 13041

13281-WC005

Bearing, Connecting Rod

PNC 13041

13281-WC006

Bearing, Connecting Rod

PNC 13041

13401-F3040

Crankshaft

PNC 13411

13401-WC006

Crankshaft

PNC 13411

13405-WC007

Flywheel Sub-assy

PNC 13405

13451-15111

Flywheel Sub-assy

PNC 13405

13451-F3040

Flywheel Sub-assy

PNC 13405

13470-WC004

Pulley, Crankshaft

PNC 13471

13470-WC005

Pulley, Crankshaft

PNC 13471

13471-F3010

Pulley, Crankshaft

PNC 13471

13521-F3060

Gear Or Sprocket, Crankshaft Timing

PNC 13521

13521-WC002

Gear Or Sprocket, Crankshaft Timing

PNC 13521

19315-24010

Plate, Crank Angle Sensor, No.1

PNC 19315

19315-F2030

Plate, Crank Angle Sensor, No.1

PNC 19315

19315-WC005

Plate, Crank Angle Sensor, No.1

PNC 19315

90105-12404

Bolt, Flywheel Setting

PNC 13405B

90118-WC083

Key, Crankshaft(for Crankshaft Pulley Set)

PNC 13471A

90118-WC096

Bolt, Flywheel Setting

PNC 13405B

90118-WC227

Ring, Hole Snap(for Piston Pin)

PNC 13101A

90118-WC307

Bolt(for Crankshaft Pulley Set)

PNC 13471C

90118-WC309

Bearing(for Crankshaft)

PNC 13400A

90118-WC339

Seal, Crankshaft Oil

PNC 11551A

90119-16020

Bolt(for Crankshaft Pulley Set)

PNC 13471C

90250-06035

Pin, Straight(for Crankshaft)

PNC 13411C

90250-08120

Pin, Straight(for Flywheel)

PNC 13405A

90280-04001

Key, Crankshaft(for Crankshaft Pulley Set)

PNC 13471A

90520-19019

Ring, Hole Snap(for Piston Pin)

PNC 13101A

25892-WC001

Diagram Hardware / Fastener

PNC 25892WC001
